Unity tool / GUI
Radial Menu Toolkit
Radial menus from 10 presets, editable at runtime.
- Version
- 1.1.1
- Released
- June 2026
1 / 9

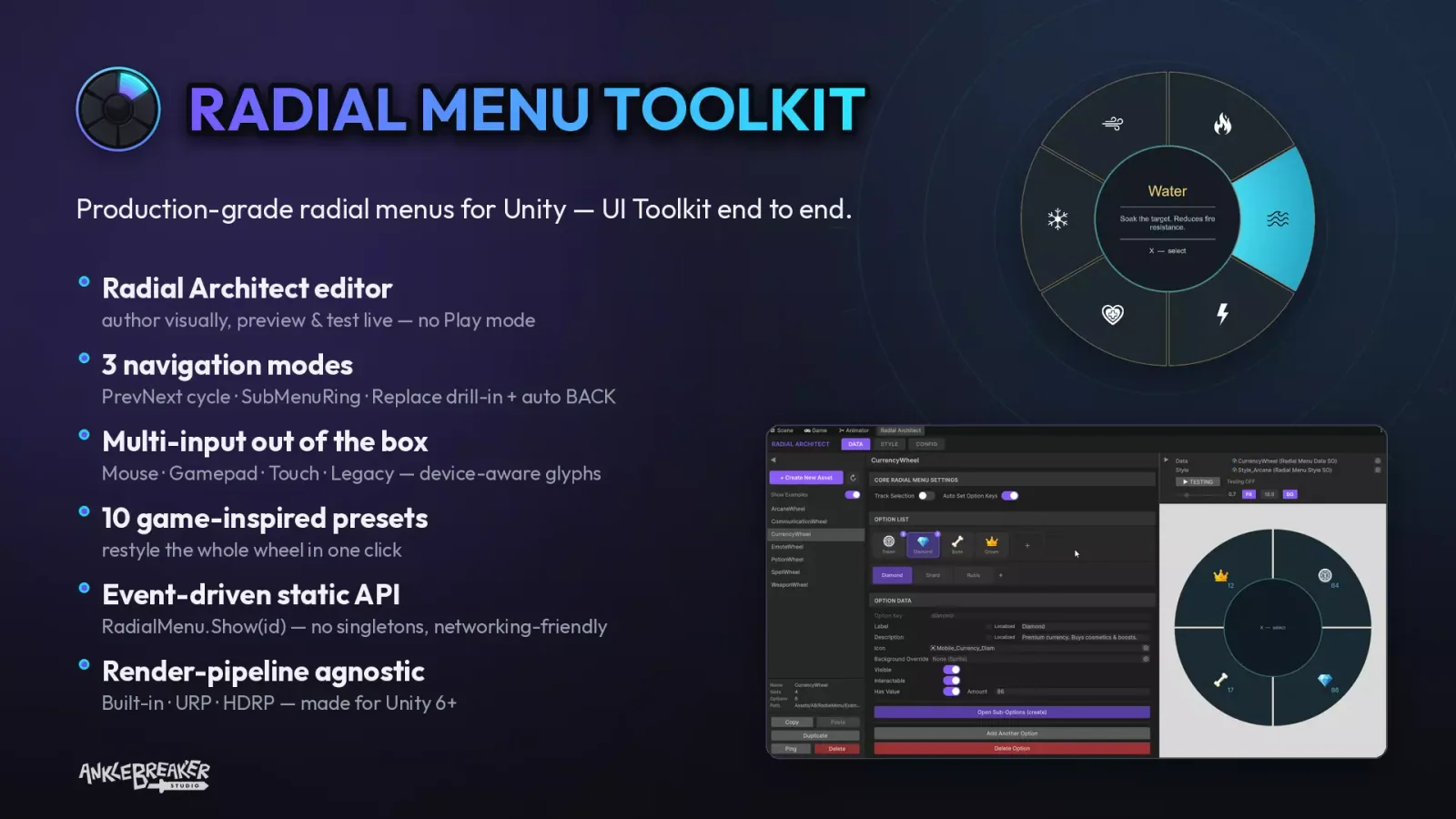

Author a radial menu visually, restyle it from ten game-inspired presets, and open or edit any wheel at runtime with a single line of code.
It is UI Toolkit from end to end: no Canvas, no uGUI, no render pipeline lock-in.

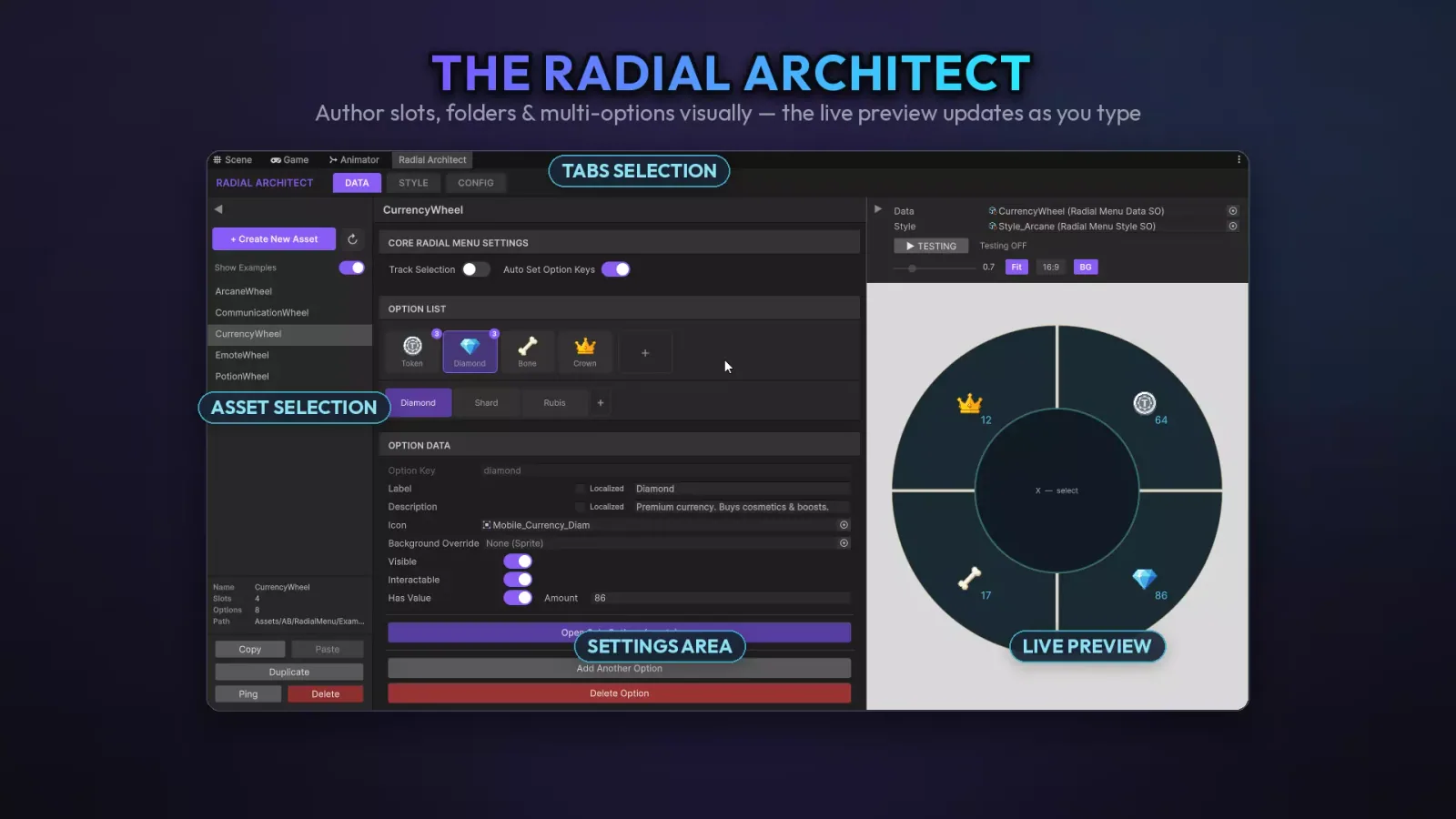

The Radial Architect window is the cockpit: Data, Style and Config tabs with a live, interactive preview that updates as you drag each slider, so you build and tune a wheel without entering Play Mode.

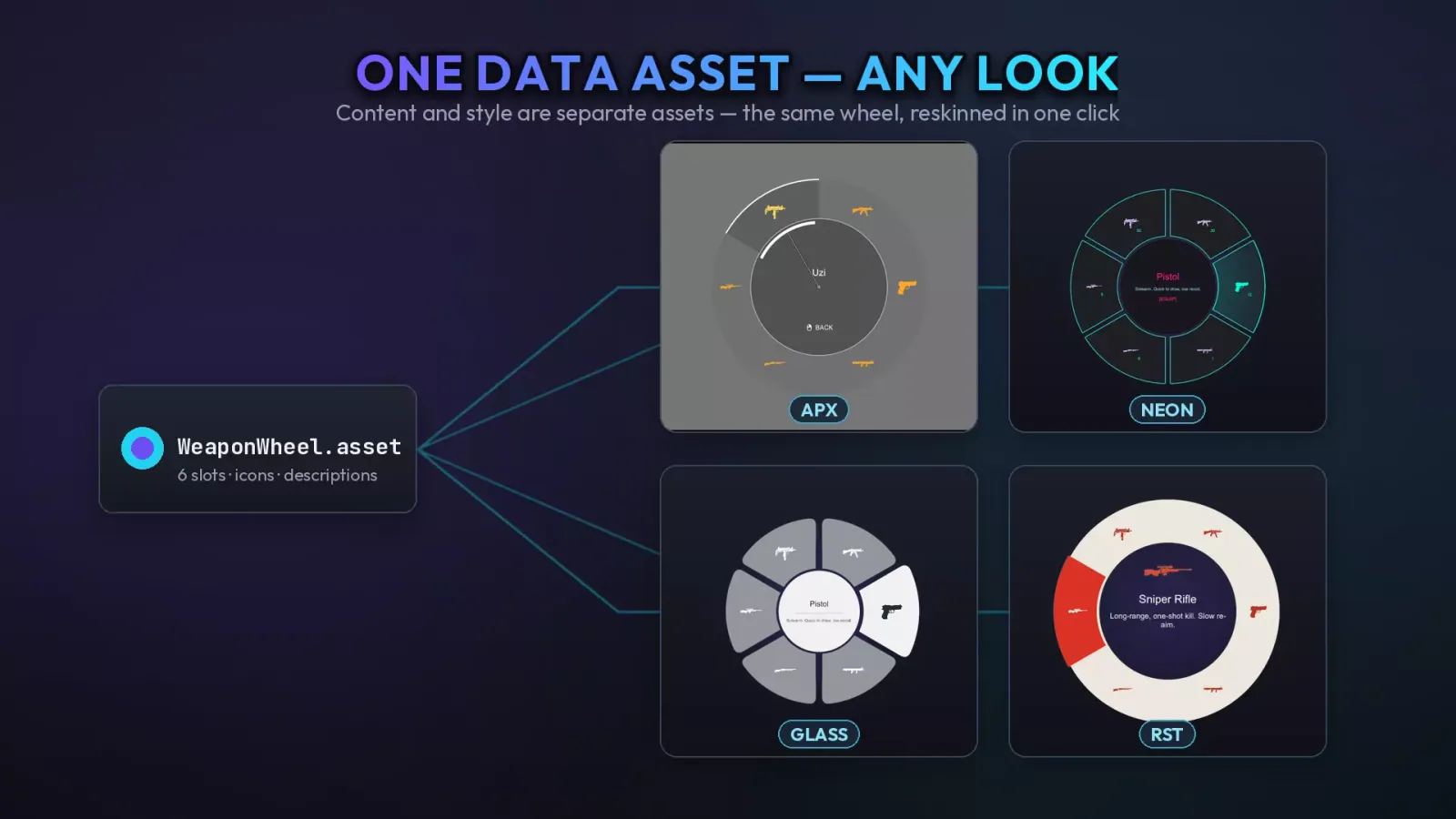

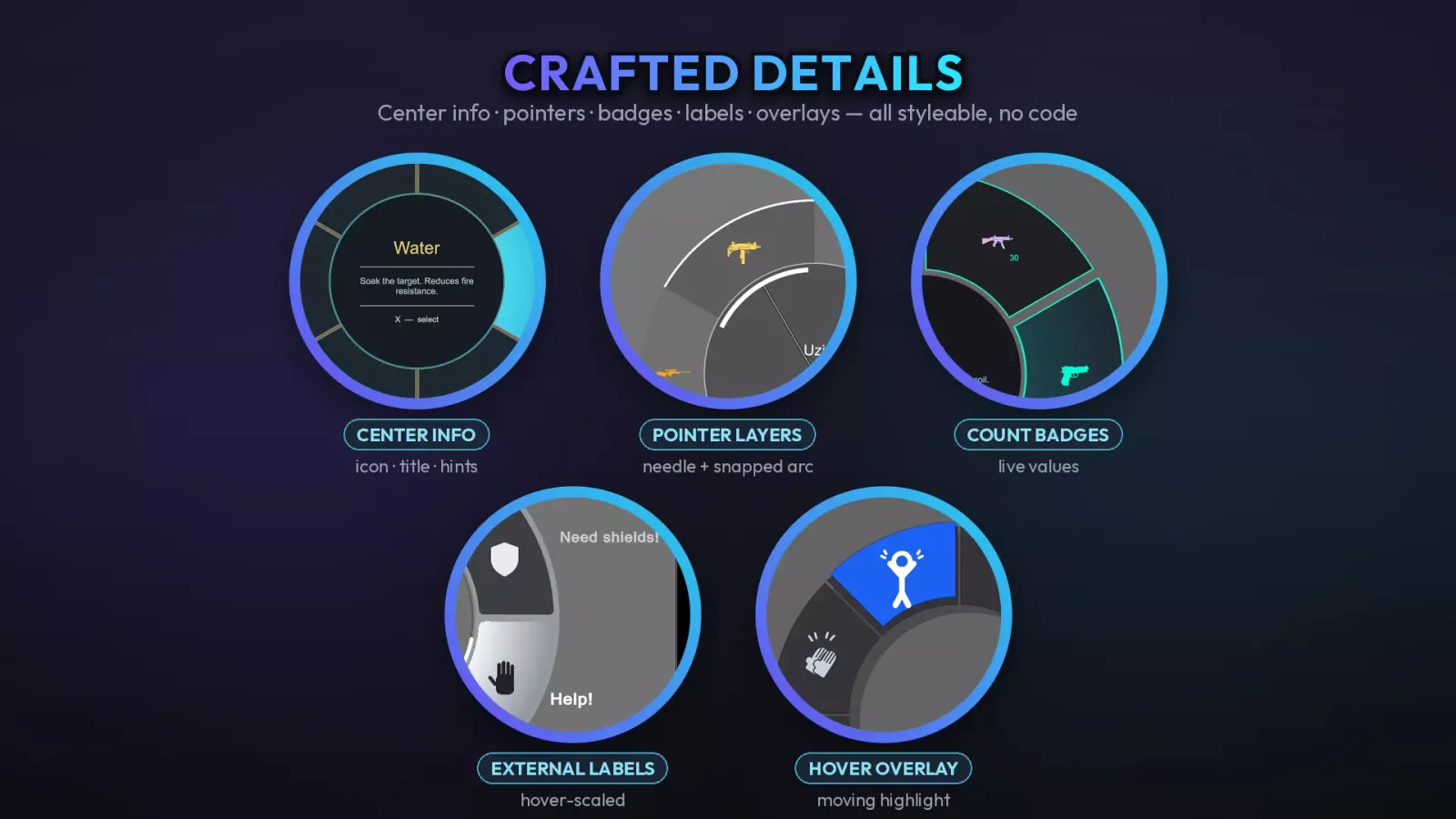

One RadialMenuStyleSO drives the whole look through 18 sections, from geometry, wedges and icons to the center stack, pointer, animation and pagination. Swap the Style asset and the same wheel takes a completely different look.

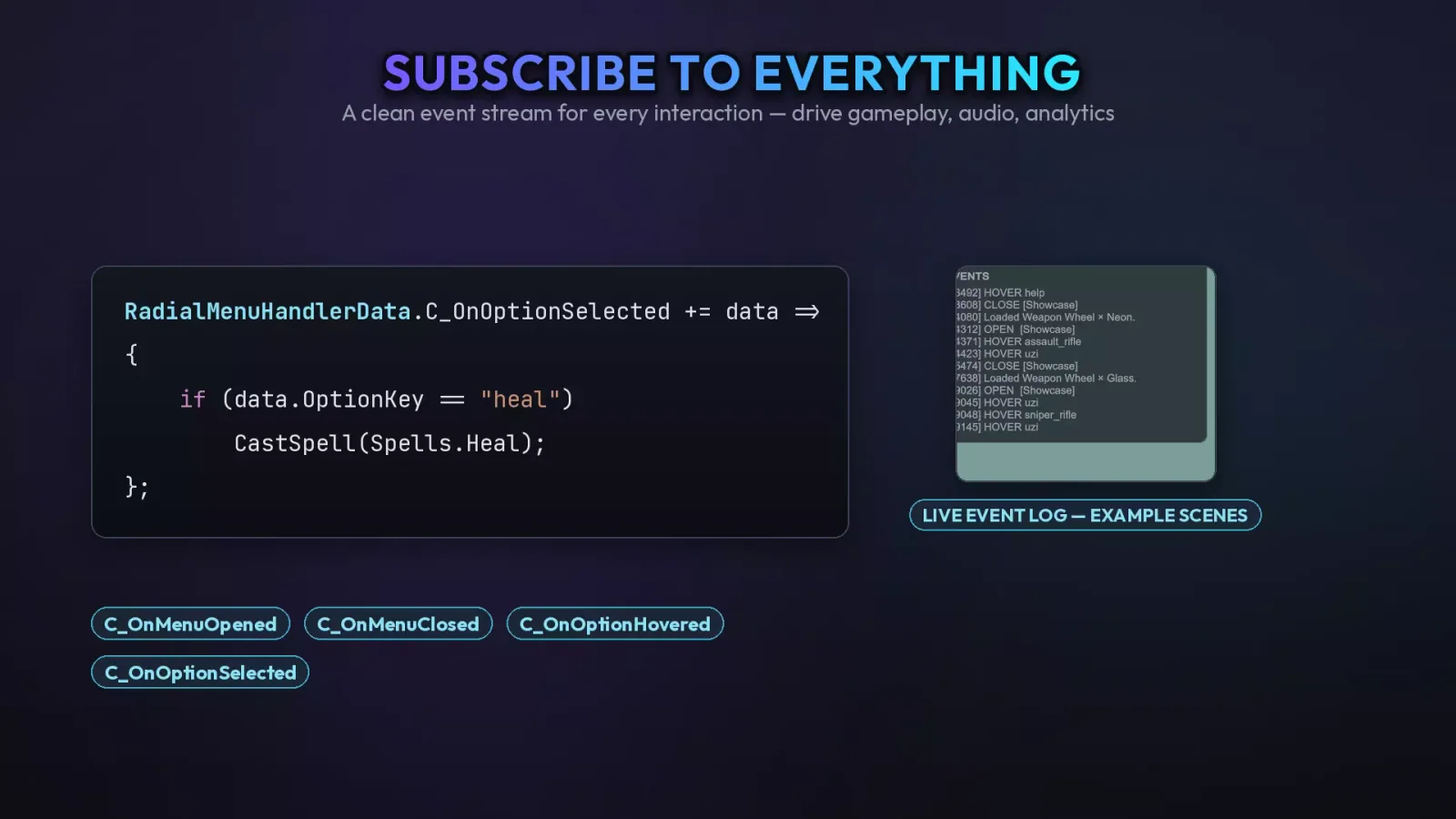

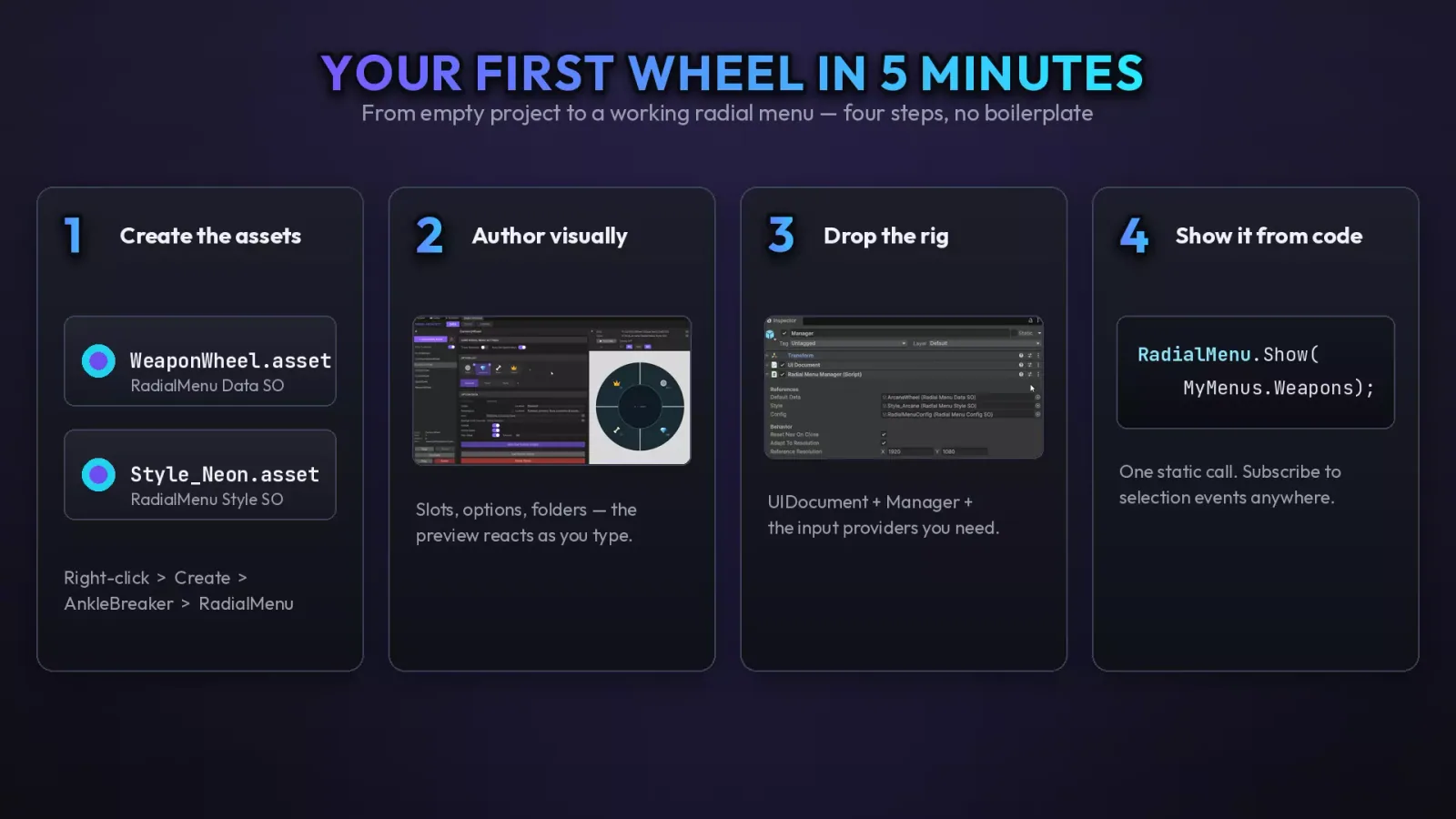

At runtime a static facade does the work: RadialMenu.Show(MyMenus.Weapons). Add, edit, remove or clear options without touching your authored asset, and react to picks through an event bus that behaves the same in single-player and networked code.
What you get

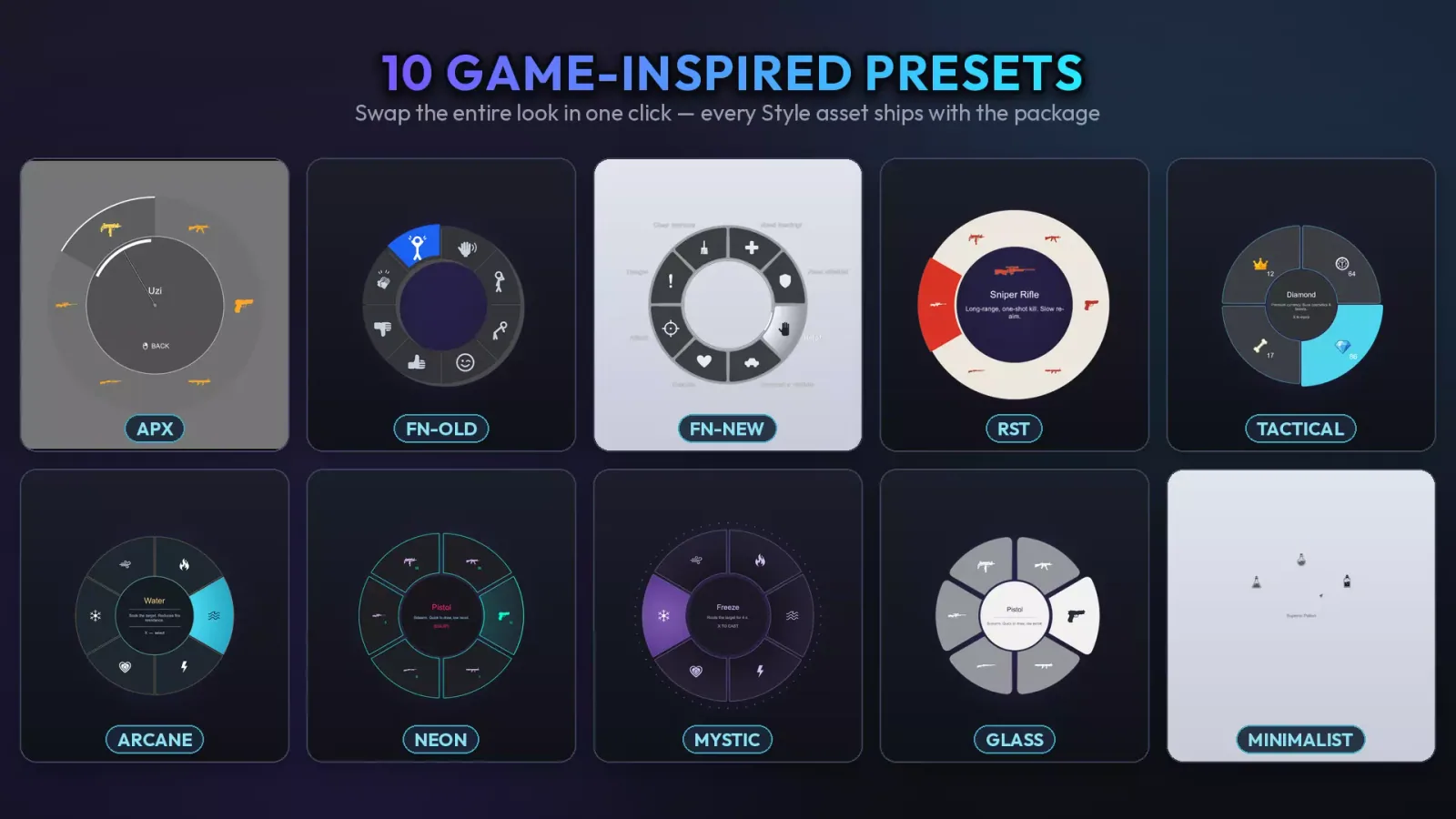

10 presets
Ready-to-use Style assets, including Survival, Battle Royale, Mobile, Arcane, Neon, Mystic, Glass and Minimalist looks.
3 navigation modes
PrevNext, SubMenuRing and Replace, with an auto-injected Back option, a depth cap and multi-page pagination.
Multi-input

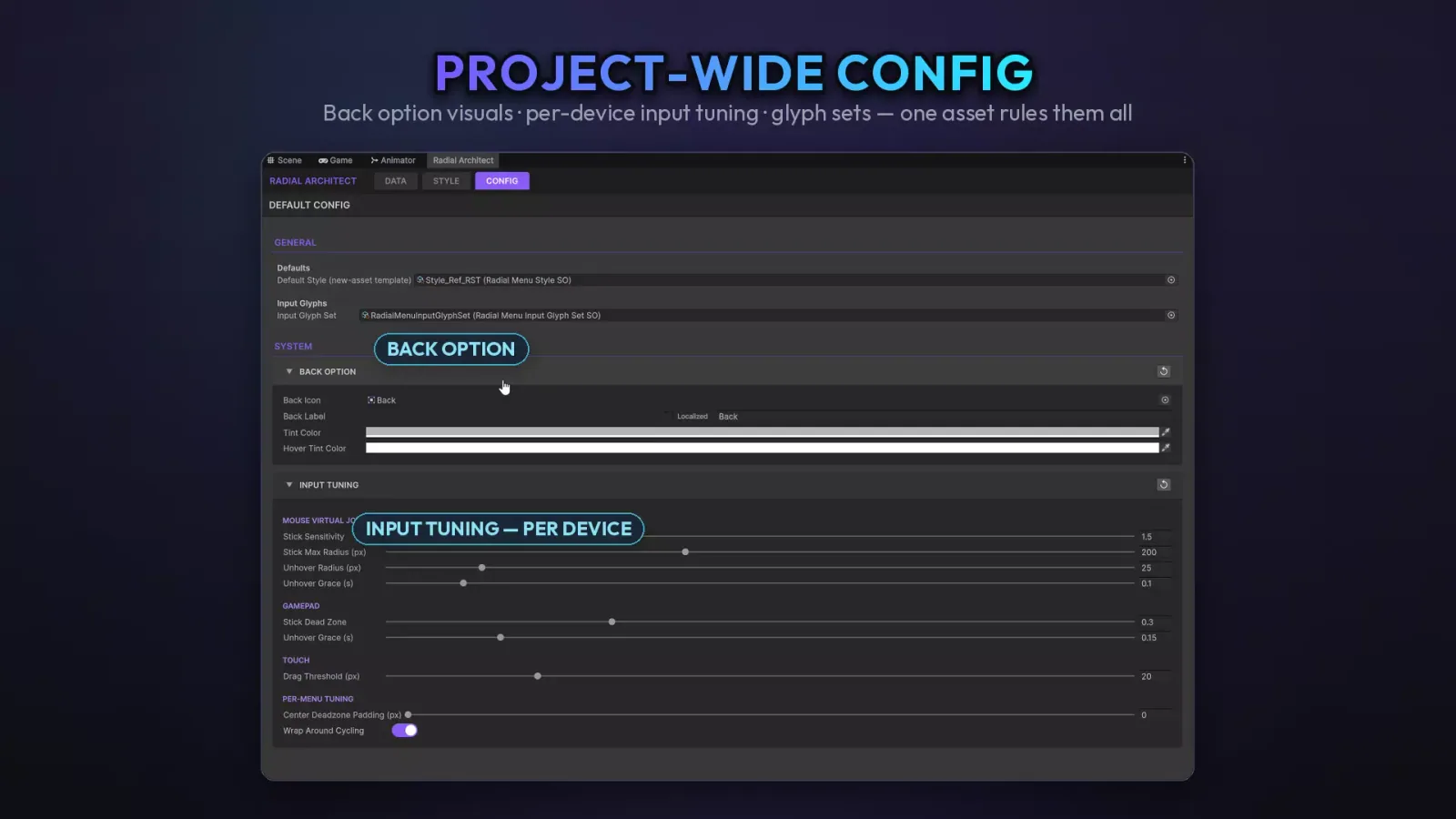

Mouse, Gamepad, Touch and Legacy providers, toggleable at runtime, with device-aware input glyphs.
No singletons
Any number of wheels coexist, each routed by its own id through the RadialMenuHandlerData event bus.
Localization
Optional support for Unity Localization and I2 Localization.
Tested and documented
173 NUnit tests, three sample scenes and an illustrated 55-page PDF user guide.
Technical details
- Unity version
- 6 (6000.x) and newer
- Render pipelines
- Built-in, URP, HDRP (UI Toolkit, no setup)
- UI framework
- UI Toolkit (UXML and USS), no uGUI or Canvas
- Dependencies
- AnkleBreaker Core and Utils UniversalTypes (Git); TextMeshPro, Input System
- Content
- 18-section style system, 10 presets, 5 navigation variants, 3 sample scenes
- Tests
- 173 NUnit tests
- File count
- 256
